Fan-coil units
Species evolution
  • Fan made of plastic with low revolutions number, superlative silent
  • Available 7 different motorizations: AC~230V-single-phase (FX traditional, FX-P potentiate, FX-S super-silent) and EC~230V-Brushless (FXE standard, FXE-P potentiate, FXE-S super-silent, FXE+ Plus/Axi)

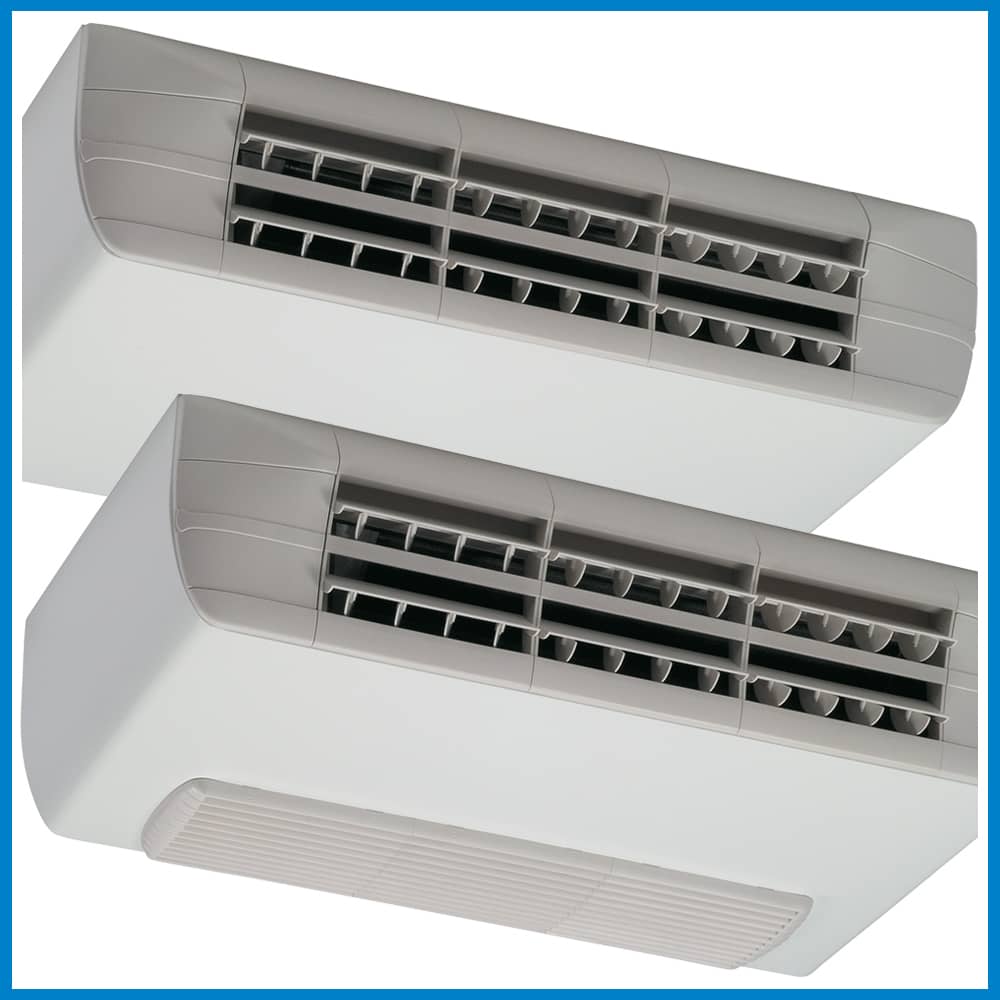

  • Air supply grills with double bank adjustable louvers to send the air-flow in any direction:
    • Louvers adjusted in opposite position will increase the Induction Effect
    • Some Louvers closed will increase the air-flow speed increasing the Air Throw
    • Adjusting the air-flow tangentially to the ceiling/wall will increase the Coanda Effect
    • All Louvers closed when the unit is not in use, will Avoid the Dust and Dirtiness to get in

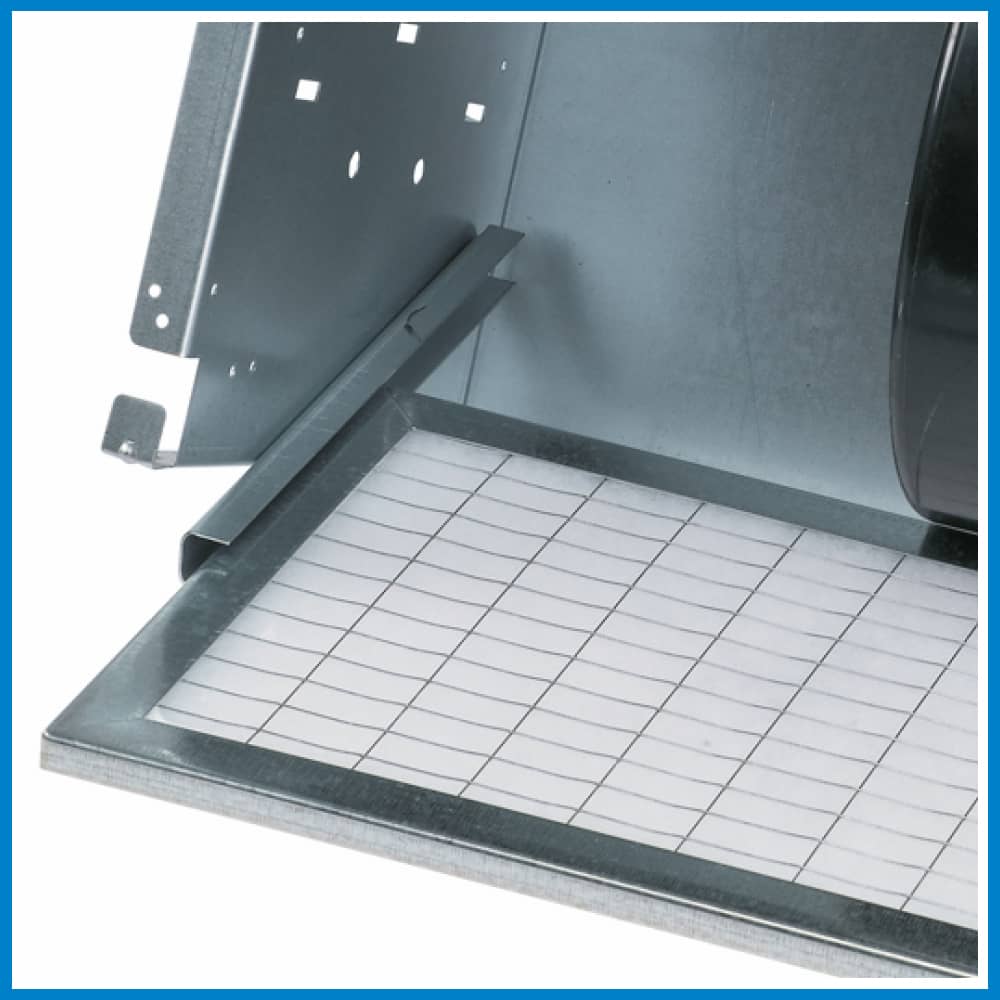

  • High efficiency air filter, easily removable and cleanable
  • Strong compact units, with elegant and clean Design
  • Left or Right hydraulic connections (on request, without extra price) + on site reversibility
  • Wide variety of models and accessories supplied mounted and tested in the factory to guarantee simplicity and minimum installation times
Available versions

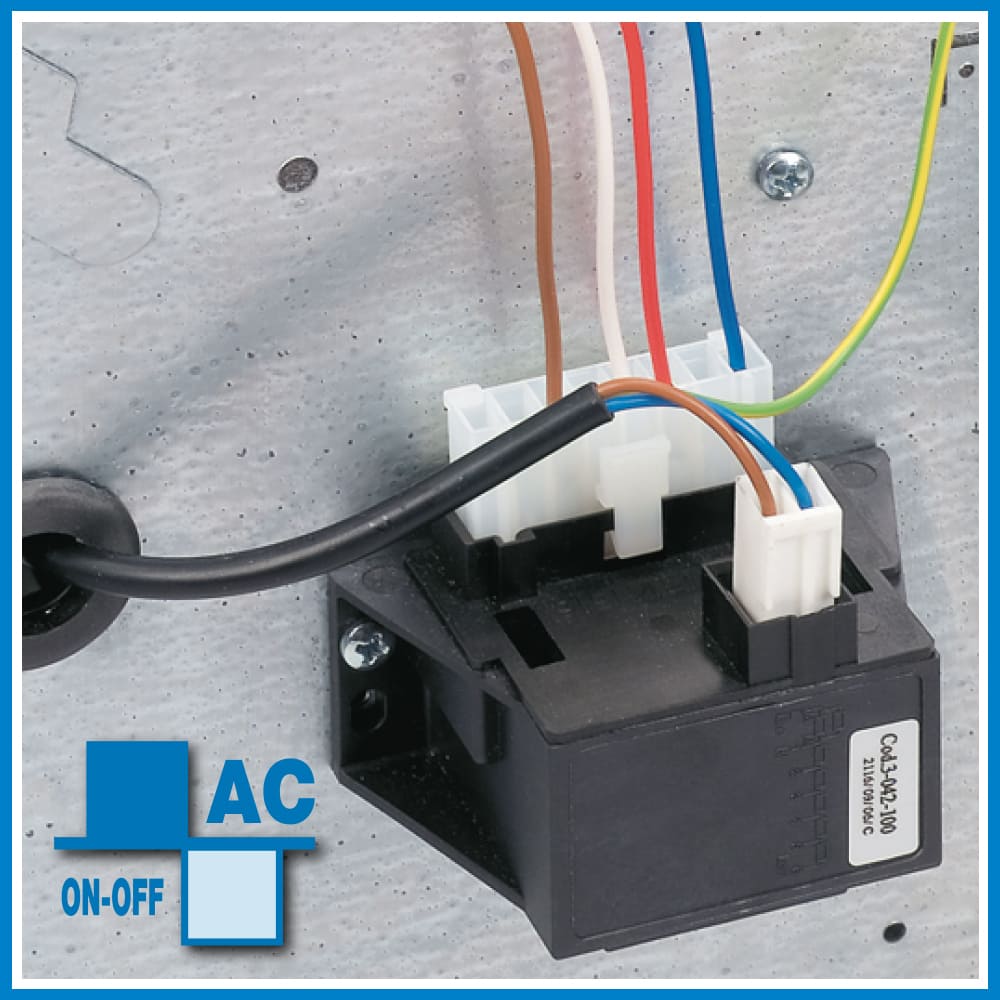

AC~230V-Standard Motor – 3 Speed

ESP Max 75Pa

ESP Max 90Pa

ESP Max 45Pa

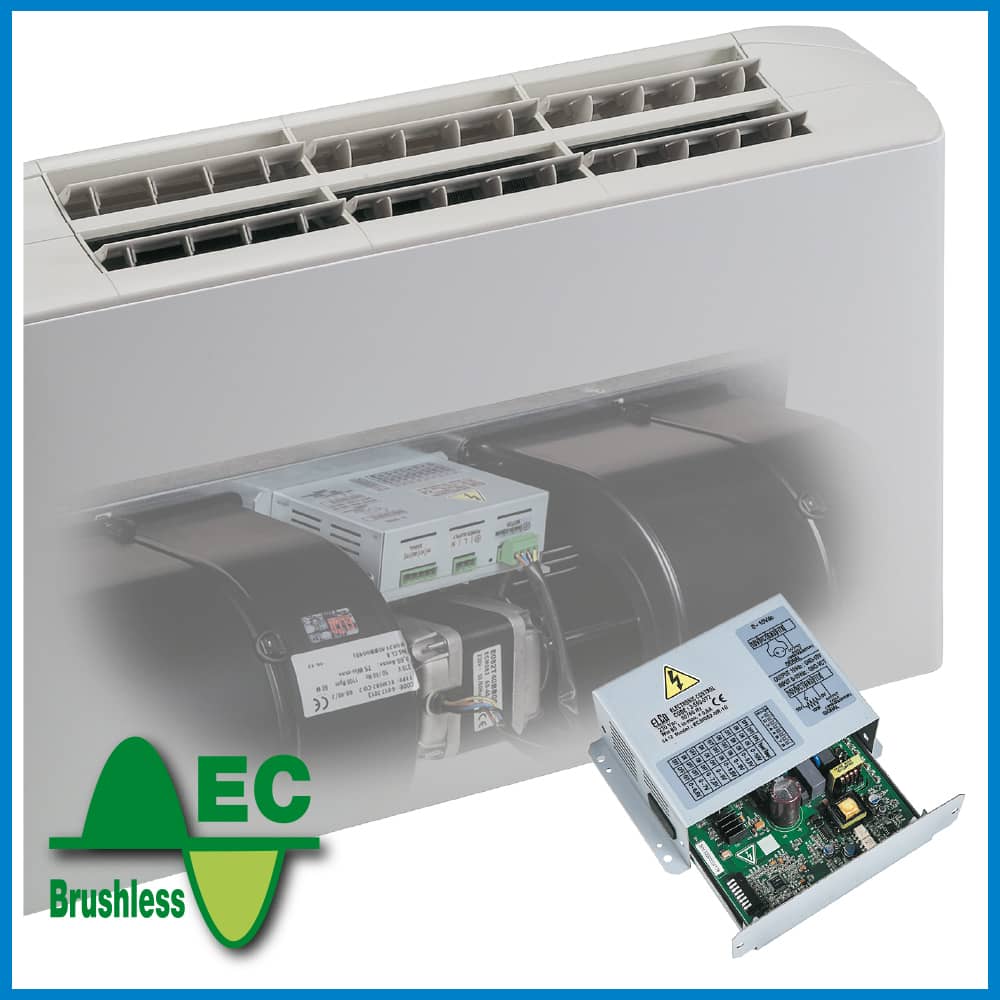

Brushless Modulating Motor

ESP Max 75Pa

ESP Max 90Pa

ESP Max 45Pa

ESP Max 90Pa
