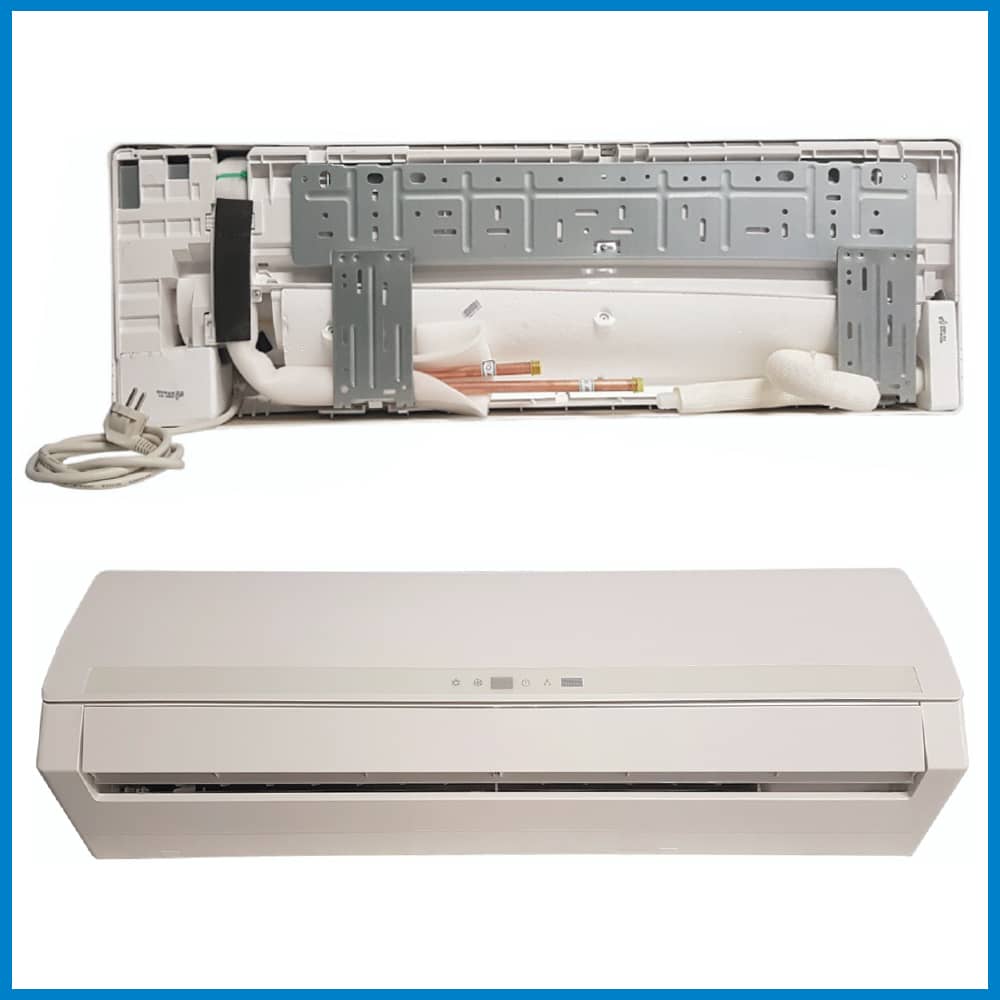

Wall Fan-coil units

Fan Motor AC~230V-Standard 3 SPeed

Wall fan-coil units: … the water split
  • Beautiful, smart and modern design
  • Adjustable and motorised air supply fins with different positions
  • AC~230V-single-phase motor with 3-Speed (automatic + manual)
  • Several functioning mode: automatic, cooling, dry, ventilation and heating
  • Timer and several others programmable functions with I.R. control
  • Control with wired remote control also
  • Water low temperature sensor
  • Electronic card with AUTORESTART function
  • The terminal board is provided with an output to control an eventual electrovalve (2 or 3 way) 230Vac on/off

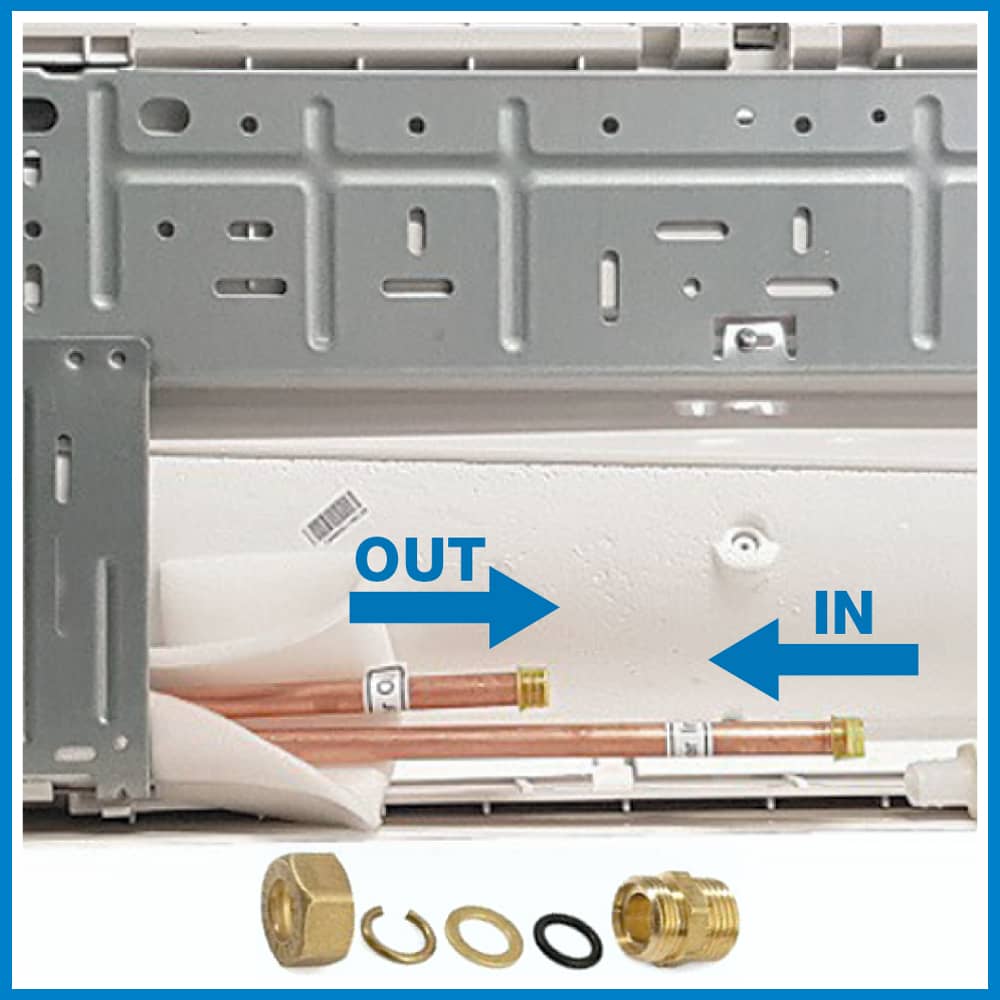

  • The unit is provided with mounting bracket made of extremely thick galvanized steel-sheet with holes enabling wall mounting
  • High efficiency air filter, easily removable and cleanable
  • Working with water temperature limit 80°C

1,5÷10,0

3,7÷21,7

370÷1.750

Max 75
